1800X3600mm Gyratory Screen Separator for 30 Tons Per Hour Urea Granule
Overview of Gyratory Screening Machine for Urea Granule:
Gyratory screening machine for urea granule is also called gyratory screen, gyratory screener, gyratory separator, gyratory sifter, Rotex screen, Rotex screening machine, Rotex separator, planar rotary screen, plane rotary screen, rotary flat sieve, flat screen, square precision screening machine, reciprocating screen etc.
Driven by an ordinary motor, this screening machine drives the eccentric wheel to do gyratory reciprocating motion. It is often used for screening petroleum coke, activated carbon, quartz sand, silica sand, frac sand, precoated sand, urea, fertilizer, resin, glass bead, wood pellet, sodium carbonate, melamine, tea, sugar, salt, soybean etc.
| Moving Trajectory | gyratory reciprocating motion: circular motion at feed end, elliptical motion at center, and linear motion at discharge end |
| Drive Device | general motor + exciter |
| Layers of Screen | 1~4 layers of screen available |
| Screen Size | 500*1500mm, 1000*2100mm, 1000*3000mm, 1500*3000mm, 1500*3600mm, 1800*3600mm, 1800*4000mm, 2000*5000mm etc. |
| Motor Brand | Siemens, or according to customer requirements |
| Spare Parts | the special screen, drive exciter, compensating clamps and clips are made by ourselves |
| Discharge Port | usually at the bottom of the machine, it can also be made at the back of the machine |
| Material | carbon steel, contact parts stainless steel (optional) |
| Installation | floor seat installation, cable suspension installation |
| Mesh Cleaning Method | Use mesh cleaning balls to clean the screen mesh. Rubber ball, silicone ball, polyurethane ball etc. |
Working Principle of Gyratory Screening Machine for Urea Granule:
The gyratory reciprocating motion of gyratory screen begins with a circular motion at the feed end, gradually diminishing along the length of the machine to elliptical movement in the middle, and finally to an almost straight-line motion at the discharge end.
Technical Parameters of Gyratory Screening Machine for Urea Granule:
| Layers | Model | Screen Surface Specification (W*L) (mm) | Screen Box Stroke (mm) | Motor | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) |
| Power (kw) | Rotation Rate (rpm) |
| 1 | AD-1014-1 | 1000*1400 | 63.5 | 1.5 | 960 | 2731 | 962 | 1168 | 1200 | 715 |
| AD-1021-1 | 1000*2100 | 63.5 | 1.5 | 960 | 3285 | 962 | 1156 | 1200 | 980 |
| AD-1030-1 | 1000*3000 | 63.5 | 1.5 | 960 | 4484 | 1035 | 1194 | 1251 | 1200 |
| AD-1521-1 | 1500*2100 | 63.5 | 1.5 | 960 | 3460 | 1003 | 1708 | 1759 | 1380 |
| AD-1530-1 | 1500*3000 | 76 | 2.2 | 960 | 4232 | 1362 | 1778 | 1892 | 1340 |
| AD-1536-1 | 1500*3600 | 76 | 5.5 | 960 | 5098 | 1352 | 1956 | 2048 | 2410 |
| 2 | AD-1236-2 | 1200*3600 | 76 | 5.5 | 960 | 5263 | 1327 | 2464 | 2556 | 2020 |
| AD-1021-2 | 1000*2100 | 63.5 | 1.5 | 960 | 3743 | 1121 | 1308 | 1378 | 1400 |
| AD-1030-2 | 1000*3000 | 76 | 4 | 960 | 4575 | 1317 | 1270 | 1546 | 1840 |
| AD-1521-2 | 1500*2100 | 63.5 | 4 | 960 | 3728 | 1330 | 1781 | 1946 | 1710 |
| AD-1836-2 | 1800*3600 | 76 | 7.5 | 960 | 5305 | 1500 | 2256 | 2459 | 3880 |
| AD-1530-2 | 1500*3000 | 76 | 7.5 | 960 | 4765 | 1397 | 1956 | 2159 | 2780 |
| AD-1536-2 | 1500*3600 | 76 | 7.5 | 960 | 5365 | 1368 | 2032 | 2019 | 3180 |
| 3 | AD-1021-3 | 1000*2100 | 63.5 | 5.5 | 960 | 4854 | 1422 | 1435 | 1549 | 2150 |
| AD-1530-3 | 1500*3000 | 76 | 5.5 | 960 | 4765 | 1391 | 1956 | 2159 | 3200 |
| AD-1836-3 | 1800*3600 | 76 | 7.5 | 960 | 5200 | 1500 | 2400 | 2500 | 4170 |
| AD-2050-3 | 2000*5000 | 92 | 11 | 960 | 5400 | 2000 | 2750 | 2810 | 5500 |
Advantages of Gyratory Screening Machine for Urea Granule:
1. unique gyratory reciprocating motion
2. automatic screen surface tension device
3. ball cleaning system
4. double-balanced motor system
5. convenient and quick compensating clamps for head cover
Features of Gyratory Screening Machine for Urea Granule:
1. Super large capacity and high screening accuracy, suitable for industrial continuous screening.
2. The effect of anti-clogging screen mesh blinding is good. Especially suitable for the screening of materials which are easy plugging and sticking the screen mesh.
3. Screen service life is long. It is 5~100 times than the ordinary vibrating screen.
4. The soft running does not damage the particles original structure of the material.
5. Three types of screen tensioning spring clips and screen side-pull mode. Easy to remove and replace the screen.
6. It is not easy to generate static electricity, especially suitable for the screening of materials those are flammable and explosive, and easy to generate static electricity.
7. Smooth operation, no special requirement for the plant.
8. Totally enclosed structure, no dust, low noise to 70 decibels.
Installation of Gyratory Screening Machine for Urea Granule:
1. Seat Installation:
Forward Type
Direct Discharge Type
2. Cable Suspension Installation:
Cable Suspension Type
Application of Gyratory Screening Machine for Urea Granule:
Abrasive: glass beads, slag, alumina, sand and other abrasive materials
Animal feed: feed powder and chips, meat paste and small food
Carbon products: coking coal, graphite, charcoal etc.
Chemical products: hundreds of different compounds
Clay: product classification
Fertilizer: raw material sieving and finished product fine screening.
Including ammonium nitrate, phosphate, potassium hydroxide, urea and other compounds
Food: sugar, flour, milk powder, coffee, cereals, rice, nuts, condiments, cocoa powder, glucose, starch etc.
Grain cleaning: corn, wheat, soybean and other cereals peeling and cleaning
Ore: ore, rubble, limestone, soda ash and salt
Paper: paper pulp, coating
Fiberboard: wood chips, flaking, bits of wood, to make high quality fiberboard
Drug: many large drug manufacturers use our screening machines, which meet the health standard design and GMP, to achieve precise and effectiveseparation and cleaning
Plastic: plastic particles, plastic powder
Powder metal: aluminum, copper, iron, nickel, steel, zinc and many other metal powders
Recycling of resources: used in the recycling of various materials, such as PET recycling etc.
Steel-making: classification of steel shot and metal filing

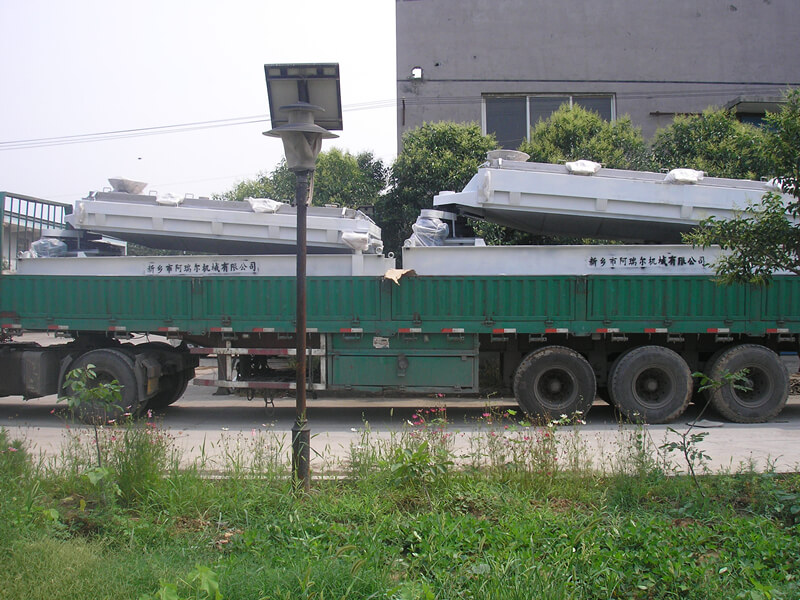

Delivery and Site Photos of Gyratory Screening Machine for Urea Granule:
